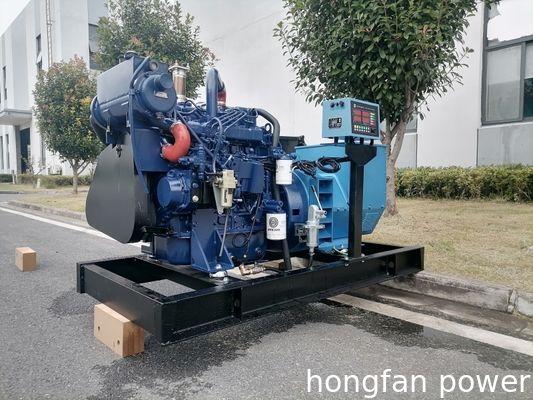

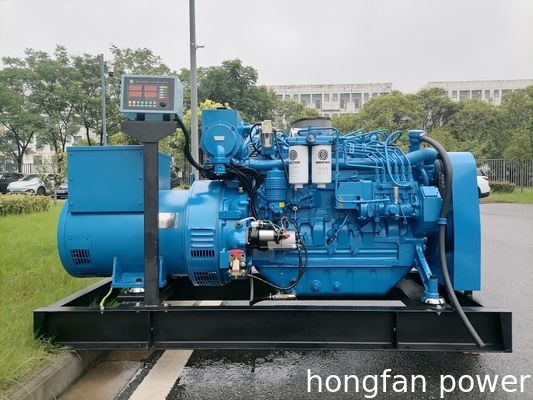

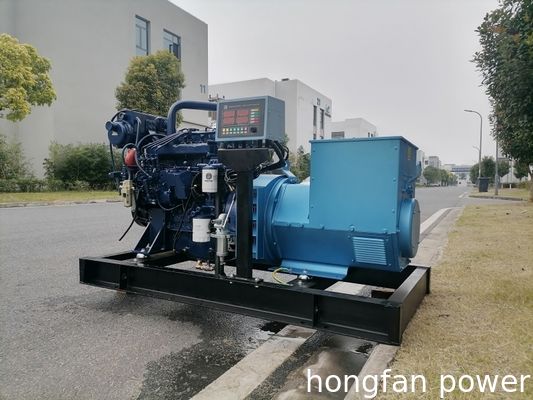

marine diesel generator set 64KW CCS certificated engine model WeichaiWP4.1CD83E200

Marine Diesel Generator Set – Technical Specifications

Model: CCFJ64J-W
Rated Power: 64 kW
Frequency: 50 Hz
Voltage: 380 V
Structure Type: Open-type (Skid-mounted)
Certification: CCS (China Classification Society)

1. Diesel Engine

• Brand / Model: Weichai WP4.1CD83E200

• Rated Power: 75 kW

• Speed: 1500 rpm

• Starting Method: Electric start

• Cooling System: Radiator cooled

• Certification: CCS compliant

2. Alternator

• Brand / Model: Marathon MP-H-64-4

• Rated Power: 64 kW

• Voltage: 380 V

• Frequency: 50 Hz

• Type: Brushless, 4-pole synchronous alternator

• Insulation Class: H

• Protection Class: IP23

• Certification: CCS

3. Control System

• Type: Marine-side panel controller

• Manufacturer: Shandong Hongfan Power Technology Co., Ltd.

• Functions:

  • Manual / Automatic start

  • Alarm and protection functions for:
    • Low oil pressure
    • High coolant temperature
    • Overspeed
    • Other fault conditions

4. Complete Generator Set

• Structure: Open-type (Skid-mounted)

• Cooling System: Radiator

• Dimensions (L × W × H): 1690 × 1250 × 1180 mm

• Weight: 1250 kg

• Certification: CCS

5. Price and Delivery

• Delivery Period: 30 days

• Contact way:

  Email:honfanpower@163.com

  Whatsapp/wechat:+8618766952912
